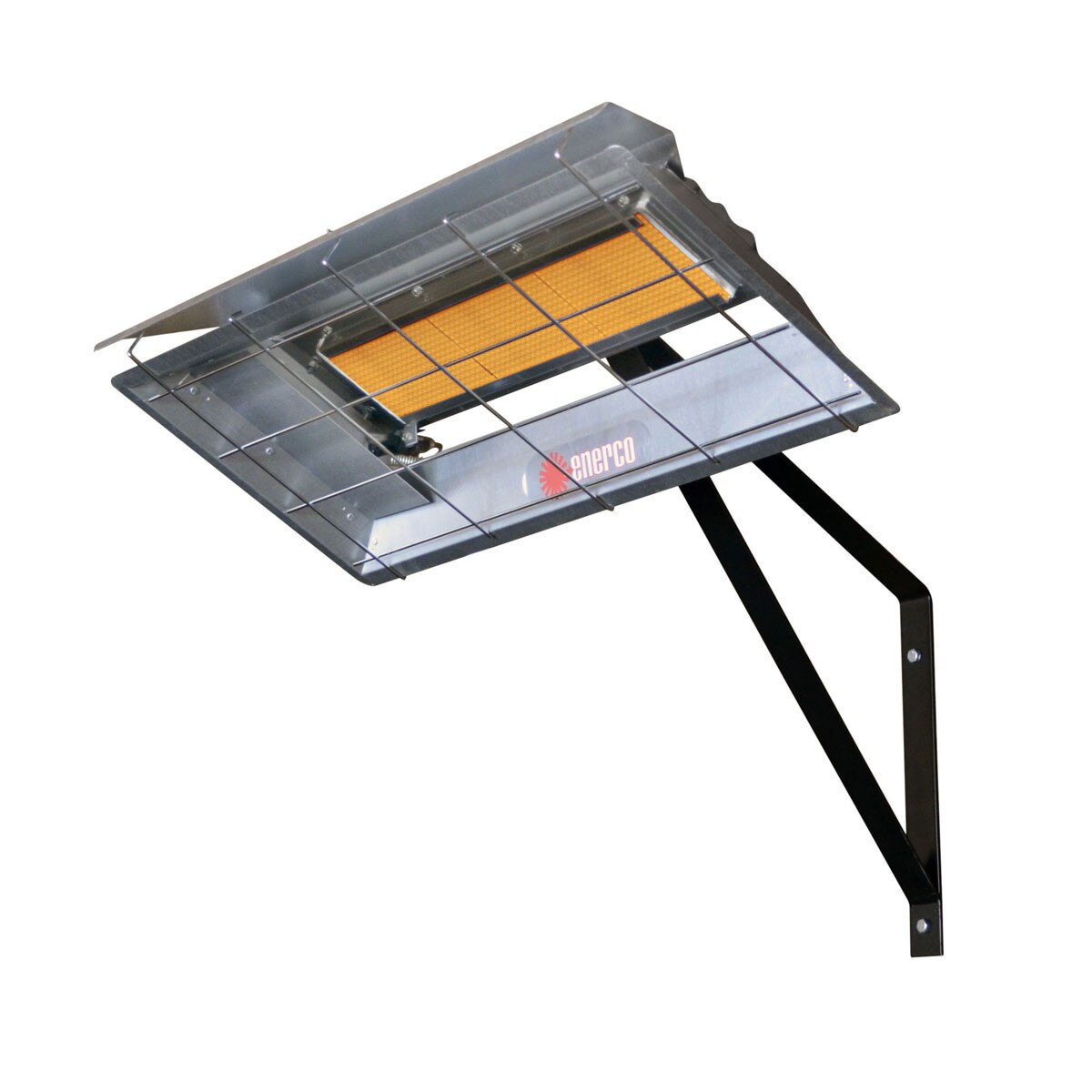

22,000 BTU High Intensity Radiant Garage & Workshop Heater (Propane) (HS25LP / F125545)

(0)No Reviews yet
SKU: F125545

This item is OUT OF STOCK

PRODUCT DETAILS

99.9% Fuel Efficiency. That is what the Heatstar HS22L 2,000 BTU Liquid Propane Radiant Heater offers. Whether you use it in your garage to keep your cars warm, in your shop to keep the work force busy and comfortable, or in a poultry house egg-room, the Heatstar radiant heater transfers almost all of the fuel it burns directly into clean safe radiant heat.

Utilizing a unique power pile thermocouple to control the valve, there is no electricity required. Just hook-up the included millivolt thermostat with the appropriate wire - not included - then mount the heater to the wall and make the gas connection, then you are ready to go. Clean, Safe, Radiant Heat whenever you need it. And since this heater is built from non-corrosive materials, you can expect a long service life.


  • 22,000 BTU per hour
  • For use with Liquid Propane
  • Heats up to 500-600 sq.ft
  • For use in buildings with 7 to 8 ft ceilings
  • Efficient infrared heat that directly heats people and objects which in turn heats surrounding air to desired temperature
  • Includes adjustable thermostat for individually controlled warmth and all necessary brackets and hardware
  • No electricity required
  • Easy to install
  • No moving parts to service
  • Quiet, clean, odour-free operation
  • Non-corrosive materials used throughout construction

Specifications

ModelHS22L (F125545)
Weight21 lbs
Fuel TypePropane
IgnitionManual
Electrical RatingNot Applicable
Electrical ConnectionNot Applicable
Transformer IncludedNot Applicable
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure Min11in WC
Gas Inlet Pressure Max14in WC
Mounting Height Range7ft - 9ft
Clearance to Combustibles: HorizontalTop 14in; Side 16in; Back 12in; Below 48in
Venting RequiredNot Required
Thermostat OptionalYes
Item Length30.75"
Item Width14.25"
Item Height10"
Warranty: Gas Control1 Year Limited
Warranty: Burner5 Year Limited
