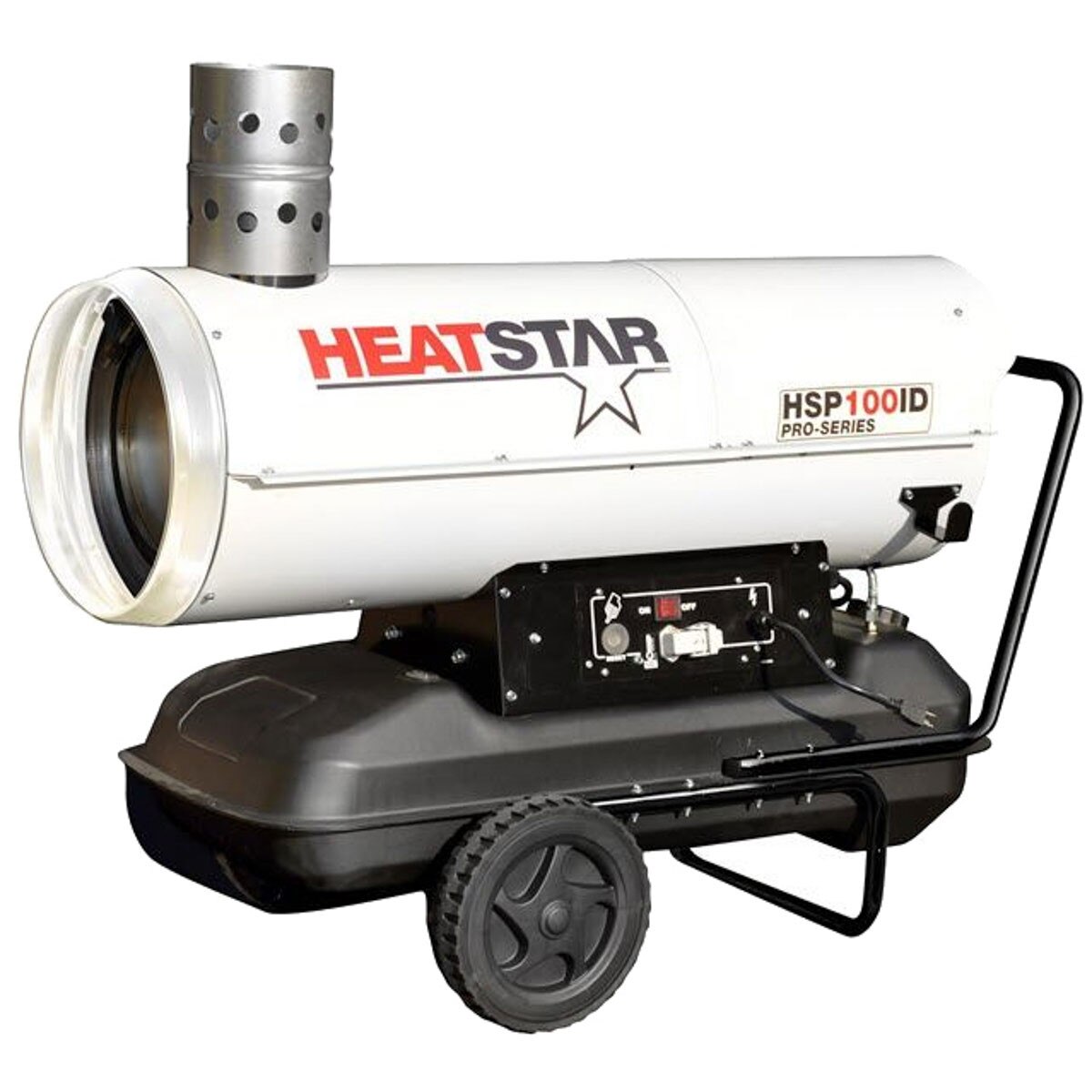

122,000 BTU Indirect Fired Construction Heater (Kerosene/Diesel/Oil/Jet Fuel) (HSP100ID / F105110)
PRODUCT DETAILS
The HeatStar HSP100ID PRO-SERIES 122,000 BTU/HR Indirect Fired Heater is an ideal heating solution when paired with 25' of 14" duct and a remote thermostat. This indirect fired heater is an ideal solution for delivering even heat to both event tents and construction sites with clean fresh heated air. You can place the heater outside the space and duct the warm air in or for a fuel savings you can place the heater in the space to be heated and vent the exhaust out. Either way it is hard to beat the comfort and safety of indirect heat.
- Heat exchanger to keep exhaust gas and heated air separate
- 17 gallon tank capacity
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
Specifications
| Model | HSP100ID (F105110) |
| Weight | 167 lbs |
| Fuel Type | Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel |
| Tank Capacity (Gal) | 17 |
| Ignition | Continuous |
| Electrical Rating | 120v, 60 HZ, 7.5 Amp |
| Air Volume (CFM) | 1060 |
| Heated Fuel Filter | Standard |
| Heated Nozzle | No |
| Clearance to Combustibles: Horizontal | 6 ft |
| Adapter | F105104 Single (12") / F105111 Single (14") / F105117 Dual |
| Recirculating Ducting | Optional |
| Duct Length Max | 50 ft |
| Duct Diameter | 12in or 14in |
| Multiple Ducting Optional | Optional |
| Wheel Type | Solid Rubber |
| Thermostat Optional | F105108 Analog (33') / F105106 Digital (33') |
| Item Length | 48.62" |
| Item Width | 22.63" |
| Item Height | 39.37" |
| Warranty | 1 Year Limited |
